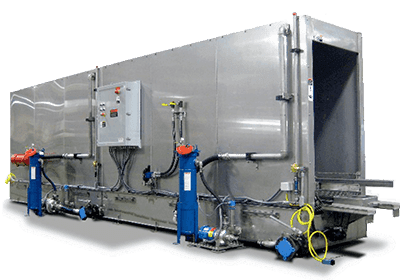

HIGH CAPACITY CART WASHER

Specifications

  • Operating speed range is dependent on cart conveyor speed and degree of cleaning desired by customer
  • Adjustable conveyor speed is factory set at 8' per minute (approx. 120 carts/hour)
  • Control features include an Allen-Bradley MicroLogix programmable controller with automatic and manual operating modes
  • Non-Metallic NEMA 4X rated main enclosure with lockable disconnect
  • Pump operation is interlocked to the water level to prevent pump damage
  • Motor controls are by others
  • CannonCart® Models: Washer is designed to wash either 80 gallon or 120 gallon Cannon Equipment milk carts
  • Electrical: 230/460 VAC, 3Ø, 60/30 Amps
  • Steam: 1-1/2" NPT male connection for steam injector; steam requirements based on application; steam supply by others
  • Tanks: Wash tank has approximately 350 gal capacity, make-up: 3/4" NPT port on rear wall. Rinse tank has approximately 350 gal capacity, make-up: 3/4" NPT port on rear wall.
  • Wash water with a mild chemical solution not to exceed a PH of 8 is recommended
  • Rinse station includes a ball valve for manual water flow control, wash water is re-circulated, screened and filtered
  • Weight: Machine only weighs approximately 6,000 lbs. Machine with water weighs approximately 11,600 lbs.

‍

‍

Features

  • Heavy duty stainless steel construction
  • Includes multiple spray bars with high volume spray nozzles
  • Spray nozzles are easily removable for cleaning and maintenance
  • Stainless steel impellers and pump housings
  • Adjustable speed hydraulic cart conveyor track through washer
  • Corrosion resistant chain with stainless steel dogs provide smooth and steady cart motion
  • The wash and rinse water is re-circulated, screened and filtered to 400 micron
  • Automatic water fill and make-up with level control
  • 2" NPT tank drain ports
  • 8" clean out doors
  • Filtration system
  • Pre-filter trays for large debris, easy clean stainless steel pull-out style
  • Cleanable and re-usable 400 micron bag filter element
  • Two (2) 8" x 25" exhaust knockouts provided for external ventilation
  • 10 HP wash pump, 2 HP rinse pump

‍

‍

Integrations

  • Stainless steel control panel
  • Stainless steel motors
  • Stainless steel filter canisters
  • Custom configurations for infeed and exit ramps
  • Heat exchanger - raises wash water to optimal temperature for detergent
  • Touch-Screen Panel
  • High pressure wash
  • Steam controls

‍

Service and Support

‍Knight Industrial, Inc is here well beyond product delivery. We are invested in every customer’s business and value being a true partner from day one. Whether you need anew machinery solution, preventative maintenance or replacement parts, let Knight Industrial, Inc be your first call.

‍

‍

High Capacity Cart Washers are a fully automated tunnel system that provides more consistent cleaning than a manual or semi-automatic method. With separate, wash and rinse stations, our washers are able to achieve a deep cleansing action that removes residue and other potential soils. The high capacity dual filter system includes coarse drop-in screens and reusable filter elements for trouble free operation and ease of maintenance.
